Perimeter Fire Containment Systems for Curtain Wall and Façade Protection in High-Rise Buildings
At MANYCON CONTRACTING COMPANY in Saudi Arabia, we're dedicated to delivering top-notch fire safety solutions for the kingdom's most iconic buildings. Our expertise in curtain wall fire barriers, façade joint firestop systems, and perimeter wall firestop solutions has earned us the trust of the Saudi Civil Defense. We take pride in our work, ensuring every project meets the highest standards of UL, ASTM, and NFPA. From Riyadh's bustling skyscrapers to Jeddah's vibrant commercial hubs, we're the go-to partner for building owners and developers who prioritize safety and excellence
What Is Curtain Wall / Perimeter Firestop?

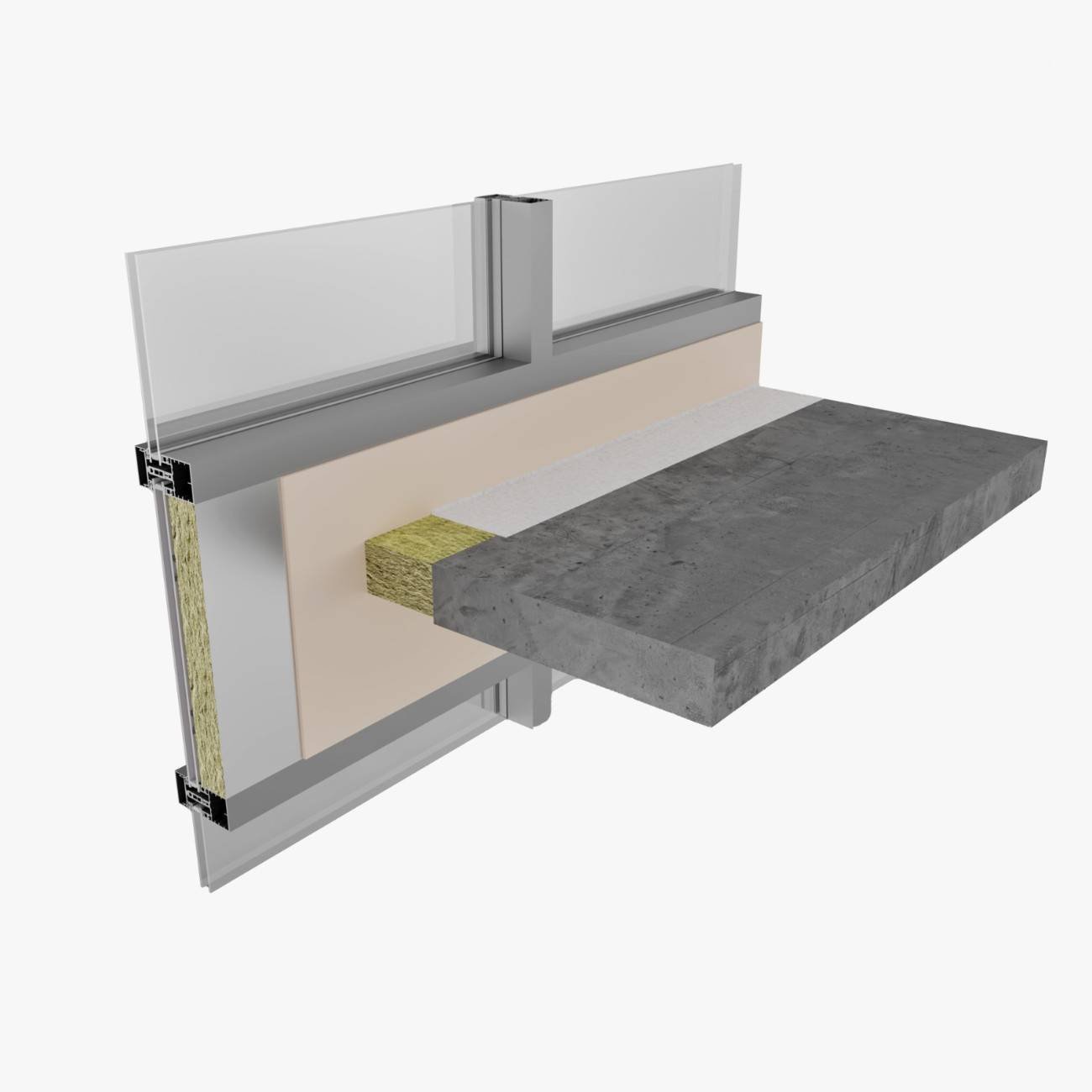

Curtain wall firestop, also known as perimeter curtain wall fire protection service, is the passive fire protection for curtain wall gaps. It involves sealing the void between the edge of the floor slab and the façade or glass curtain wall to prevent vertical fire and smoke spread. Without proper edge of slab fire barrier installation, fire can easily bypass floor compartmentation.
Our firestop systems use UL-listed curtain wall firestop systems like mineral wool safing insulation, intumescent firestop for curtain wall gaps, and fireproofing for external wall joints to ensure effective containment and QCD compliance.
Our Perimeter Fire Barrier Solutions Include:
- Curtain Wall Perimeter Firestop Installation
Edge-of-slab sealing using non-combustible mineral wool, fire-resistant boards, and intumescent sprays to contain fire at each level.
- Vision Glass to Slab Interface Sealing
Firestopping gaps between vision glass panels and slabs using curtain wall safing systems and tested UL assemblies. - Backpan Fire Barrier Systems
Installation of foil-faced mineral wool barriers behind aluminum spandrel panels or aluminum composite panels (ACP).
- Curtain Wall Retrofit Firestop
Upgrade of old or incorrectly sealed curtain wall systems with tested fire containment solutions as per UL 2079 / ASTM E2307.
- Spandrel & Mullion Fire Protection
Application of intumescent firestop sprays and wraps around metal mullions and frames to maintain fire resistance of façade joints.
Technical Details of Curtain Wall Firestop Systems
Firestop Materials Used:
Mineral Wool Safing Insulation: Fireproofing for façade perimeter joints
Aluminum Foil Tape & Fire Wraps: For securing barrier systems
Intumescent Coatings: Expand under heat to seal dynamic façade joints
Compression Seal Systems: Maintain expansion joint movement with fire rating
Fire Ratings & Standards::
1, 2, or 3-hour fire ratings
Compliant with:
- UL 2079 / ASTM E2307 (Perimeter Fire Barrier Systems)
- BS EN 1364-4 for curtain wall fire resistance
- Sauid-compliant firestop for aluminum curtain walls
- NFPA 285 compliance for façade systems
BS EN 1364-4 for curtain wall fire resistance

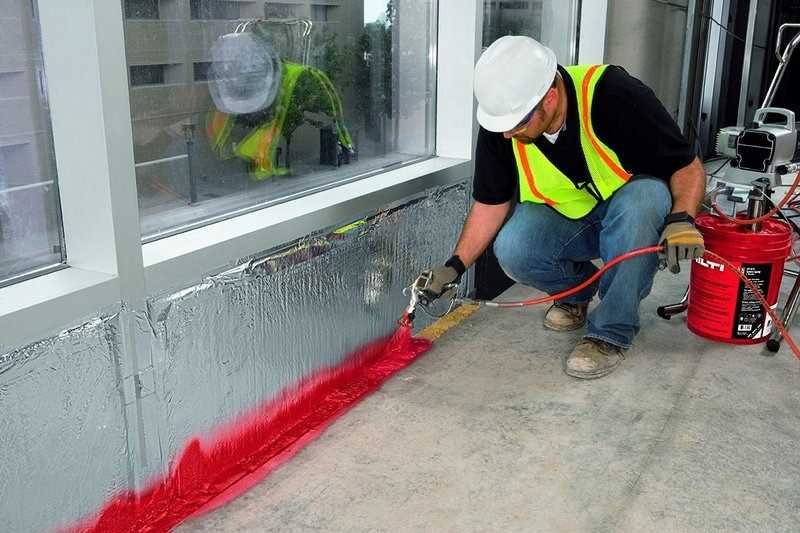

Installation Procedure:
- Mechanical fixing of mineral wool barrier
- Sealing with intumescent spray or mastic
- Adherence to tested system diagrams (e.g., UL CW-D-1014)
- Field labeling and QCD documentation submission
Applications of Curtain Wall Firestop:
- High-Rise Commercial Towers
- Business Centers & Office Buildings
- Government Ministries & Embassies
- Hotel Façades & Mixed-Use Developments
- Shopping Malls with Glass Curtain Walls
- Airports & Public Transport Stations
Why Choose MANYCON Saudi for Perimeter Fire Containment?
✅ Approved Firestop Systems for Curtain Wall & Façade Applications
✅ UL-Listed & QCD-Approved Materials and Methods
✅ Experienced Façade Firestop Applicators & Engineers
✅ Full Documentation & QA/QC Support for Civil Defense Submission
✅ Integration with Façade Works, ACP Cladding & GRP Lining Services
